Conversion Model MAXVAN Plus
MAXVAN Plus: Rear Entry Conversion
Capability
This spacious and versatile rear entry conversion enhances the RAM ProMaster® 136-inch wheelbase chassis, an exceptional vehicle with plenty of power and interior space for most transportation needs. Boasting 108-inches of channel depth, this conversion has enough room for two large wheelchairs or one gurney. Additionally, this converted RAM ProMaster® can be used to securely transport cargo such as motorcycles, appliances, boxes, tools, and much more. Look no further for a rear entry conversion van that can do it all.
Interior Features & Design
The MAXVAN Plus interior has been fully upgraded with insulated walls and ceiling, commercial grade vinyl flooring, OEM glass panels, overhead L.E.D. lighting, and stainless‑steel trim. Even with its large interior, the vehicle is still able to fit in most garages, parking decks, and drive‑throughs. Second‑row seating comes standard, and an optional two‑passenger fold‑away seat can be added to the third row.
Conversion Details

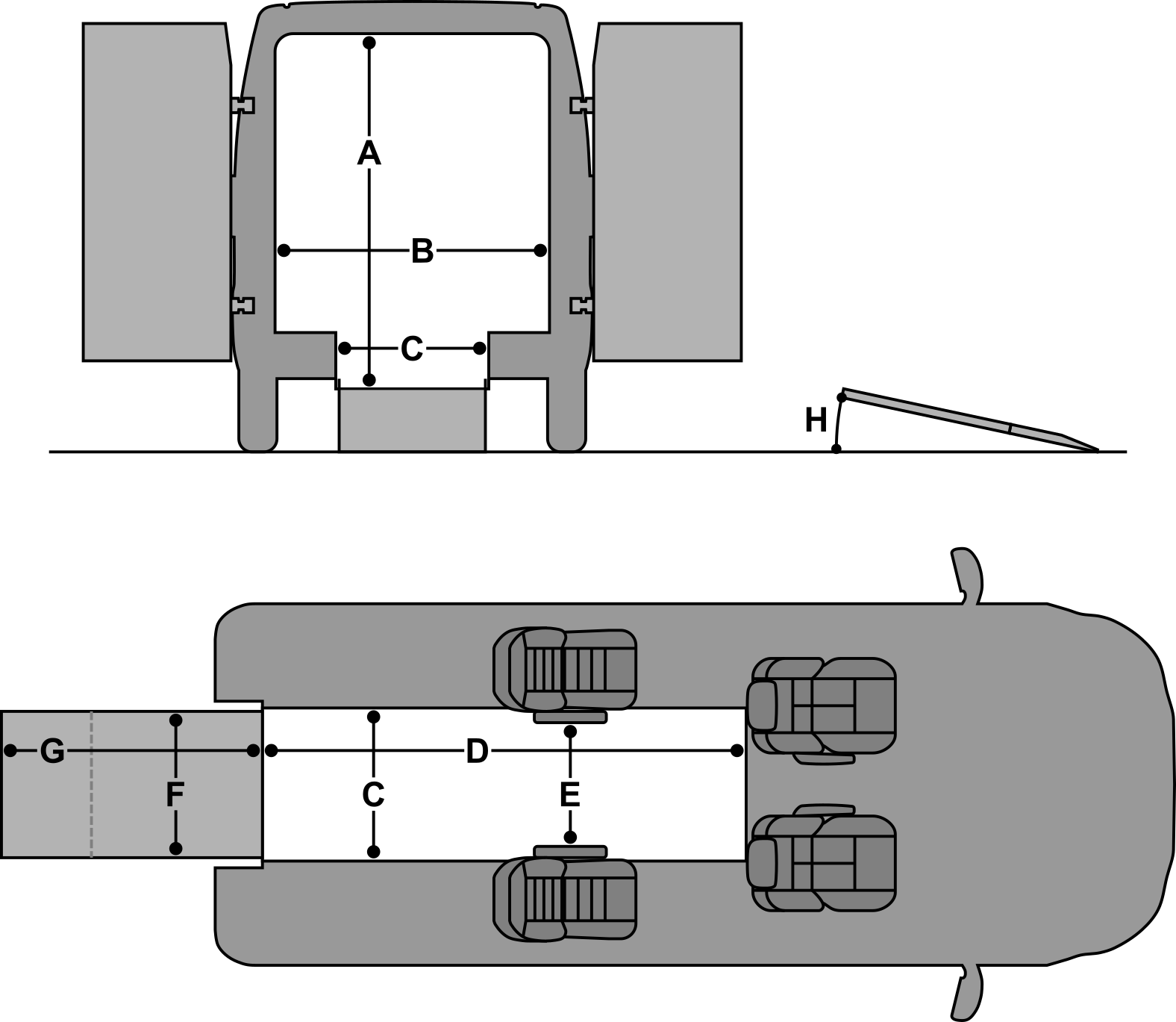

![Conversion Model MAXVAN Plus Diagram](https://adaptivevans.com/wp-content/uploads/2023/11/17-X290-LC-Dimensions-5.png)
Compatibility | |
---|---|
RAM ProMaster® 136 WB Low Roof | 2019-2023 |
Dimensions | ||
---|---|---|
Door Opening Height | A | 71" |
Door Opening Width | B | 61" |
Interior Lowered Floor Width | C | 35.5" |
Interior Lowered Floor Length (Full Length) | D | 108" |
Width Between Armrests | E | 27” |
Ramp Width (Usable) | F | 34" |
Ramp Length | G | 58" |
Ramp Angle | H | 12° |
Minimum Ground Clearance | J | 9.5" |
Due to manufacturing tolerances and environmental factors all dimensions may vary slightly from those shown
Features | |
---|---|
Manual Bi-fold Ramp | Standard |
Power Bi-fold Ramp | Optional |
Spring Assisted Ramp Operation | Standard |
Second-Row Seating | Standard |
Insulated Walls & Ceiling | Standard |
Overhead L.E.D. Lighting | Standard |
Eight Wheelchair Tie-Down Points | Standard |
Set of Manual Tie-Downs | Standard |
Commercial Grade ALTRO® Vinyl Flooring | Standard |
First-Row Passenger Double Seat (+1 Seating Capacity) | Optional |
Third-Row Fold-Away Seating (+2 Seating Capacity) | Optional |
Specifications | |
---|---|
Ramp Capacity | 800 lbs. |
Seating Capacity | 4 |
MAXVAN Plus Gallery
![](http://adaptivevans.com/wp-content/uploads/2023/11/MAXVAN-Plus-Conversion-Size-Comparison.png)
MAXVAN Plus Conversion Size Comparison
![](http://adaptivevans.com/wp-content/uploads/2023/11/MAXVAN-Plus-Decals.png)
MAXVAN Plus Decals
![](http://adaptivevans.com/wp-content/uploads/2023/11/MAXVAN-Plus-Front-Row-Seating-Option.png)
MAXVAN Plus Front Row Seating Option
![](http://adaptivevans.com/wp-content/uploads/2023/11/MAXVAN-Plus-Interior-with-People-Communicating.png)
MAXVAN Plus Interior with People Communicating
![](http://adaptivevans.com/wp-content/uploads/2023/11/MAXVAN-Plus-Exterior-Rear-wih-Rmp-Out-in-Front-of-Building.png)
MAXVAN Plus Exterior Rear wih Rmp Out in Front of Building
![](http://adaptivevans.com/wp-content/uploads/2023/11/MAXVAN-Plus-with-Two-Wheelchairs-in-Back.png)
MAXVAN Plus with Two Wheelchairs in Back
MAXVAN Plus Inventory
Listing Status: Active
![](http://adaptivevans.com/wp-content/uploads/2024/06/ME560081_2.jpg)
![](http://adaptivevans.com/wp-content/uploads/2024/06/ME560081_1.jpg)
![](http://adaptivevans.com/wp-content/uploads/2024/04/ME560081_7-1.jpg)
![](http://adaptivevans.com/wp-content/uploads/2024/04/ME560081_6-1.jpg)
![](http://adaptivevans.com/wp-content/uploads/2024/04/ME560081_5-1.jpg)
![](http://adaptivevans.com/wp-content/uploads/2024/06/ME560081_3.jpg)
![](http://adaptivevans.com/wp-content/uploads/2024/06/ME560081_4.jpg)
![](http://adaptivevans.com/wp-content/uploads/2024/06/ME560081_6.jpg)
![](http://adaptivevans.com/wp-content/uploads/2024/06/ME560081_8.jpg)
![](http://adaptivevans.com/wp-content/uploads/2024/06/ME560081_9.jpg)
![](http://adaptivevans.com/wp-content/uploads/2024/06/ME560081_11.jpg)
![](http://adaptivevans.com/wp-content/uploads/2024/04/ME560081_10-1.jpg)
![](http://adaptivevans.com/wp-content/uploads/2024/04/ME560081_4-1.jpg)
![](http://adaptivevans.com/wp-content/uploads/2024/04/ME560081_3-1.jpg)
![](http://adaptivevans.com/wp-content/uploads/2024/04/ME560081_2-1.jpg)
![](http://adaptivevans.com/wp-content/uploads/2024/04/ME560081_1-1.jpg)
ME560081_2
ME560081_1
ME560081_7
ME560081_6
ME560081_5
ME560081_3
ME560081_4
ME560081_6
ME560081_8
ME560081_9
ME560081_11
ME560081_10
ME560081_4
ME560081_3
ME560081_2
ME560081_1
![ME560081_2](http://adaptivevans.com/wp-content/uploads/2024/06/ME560081_2.jpg)
![ME560081_1](http://adaptivevans.com/wp-content/uploads/2024/06/ME560081_1.jpg)
![ME560081_7](http://adaptivevans.com/wp-content/uploads/2024/04/ME560081_7-1.jpg)
![ME560081_6](http://adaptivevans.com/wp-content/uploads/2024/04/ME560081_6-1.jpg)
![ME560081_5](http://adaptivevans.com/wp-content/uploads/2024/04/ME560081_5-1.jpg)
![ME560081_3](http://adaptivevans.com/wp-content/uploads/2024/06/ME560081_3.jpg)
![ME560081_4](http://adaptivevans.com/wp-content/uploads/2024/06/ME560081_4.jpg)
![ME560081_6](http://adaptivevans.com/wp-content/uploads/2024/06/ME560081_6.jpg)
![ME560081_8](http://adaptivevans.com/wp-content/uploads/2024/06/ME560081_8.jpg)
![ME560081_9](http://adaptivevans.com/wp-content/uploads/2024/06/ME560081_9.jpg)
![ME560081_11](http://adaptivevans.com/wp-content/uploads/2024/06/ME560081_11.jpg)
![ME560081_10](http://adaptivevans.com/wp-content/uploads/2024/04/ME560081_10-1.jpg)
![ME560081_4](http://adaptivevans.com/wp-content/uploads/2024/04/ME560081_4-1.jpg)
![ME560081_3](http://adaptivevans.com/wp-content/uploads/2024/04/ME560081_3-1.jpg)
![ME560081_2](http://adaptivevans.com/wp-content/uploads/2024/04/ME560081_2-1.jpg)
![ME560081_1](http://adaptivevans.com/wp-content/uploads/2024/04/ME560081_1-1.jpg)
New
Rear Entry
Manual
Fold-Out Ramp
2019
Dodge
Caravan
SXT
VIN: 2C4RDGCG3KR757982
Hat: 037
2019 Dodge Grand Caravan SXT trim wheelchair accessible ADA compliant rear entry manual bi-fold ramp conversion. One wheelchair capacity, with two mid-row factory bucket seats. Wheelchair tie downs included. **THIS IS NOT STRETCHER CAPABLE** this is a new conversion on a pre-owned van. (We are the manufacturer) The conversion warranty is a 36 month 36,000 mile warranty. Additionally, a comprehensive vehicle warranty is available to cover the van itself. Inquire for details. We further provide the vehicle warranty at cost - no mark-up. Nationwide delivery is available as well. Again, call for details for a quote on shipping the van to your residence.
